Description

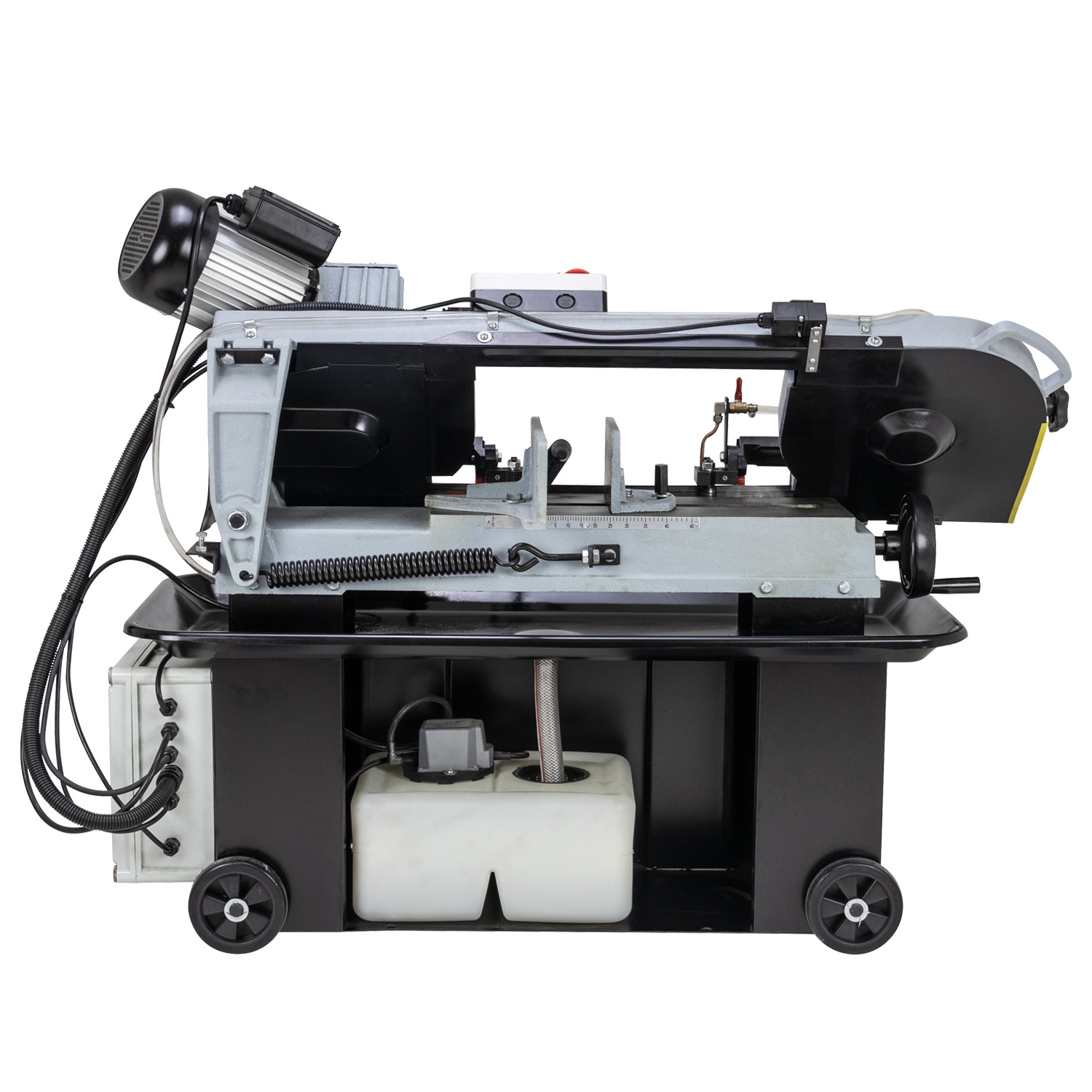

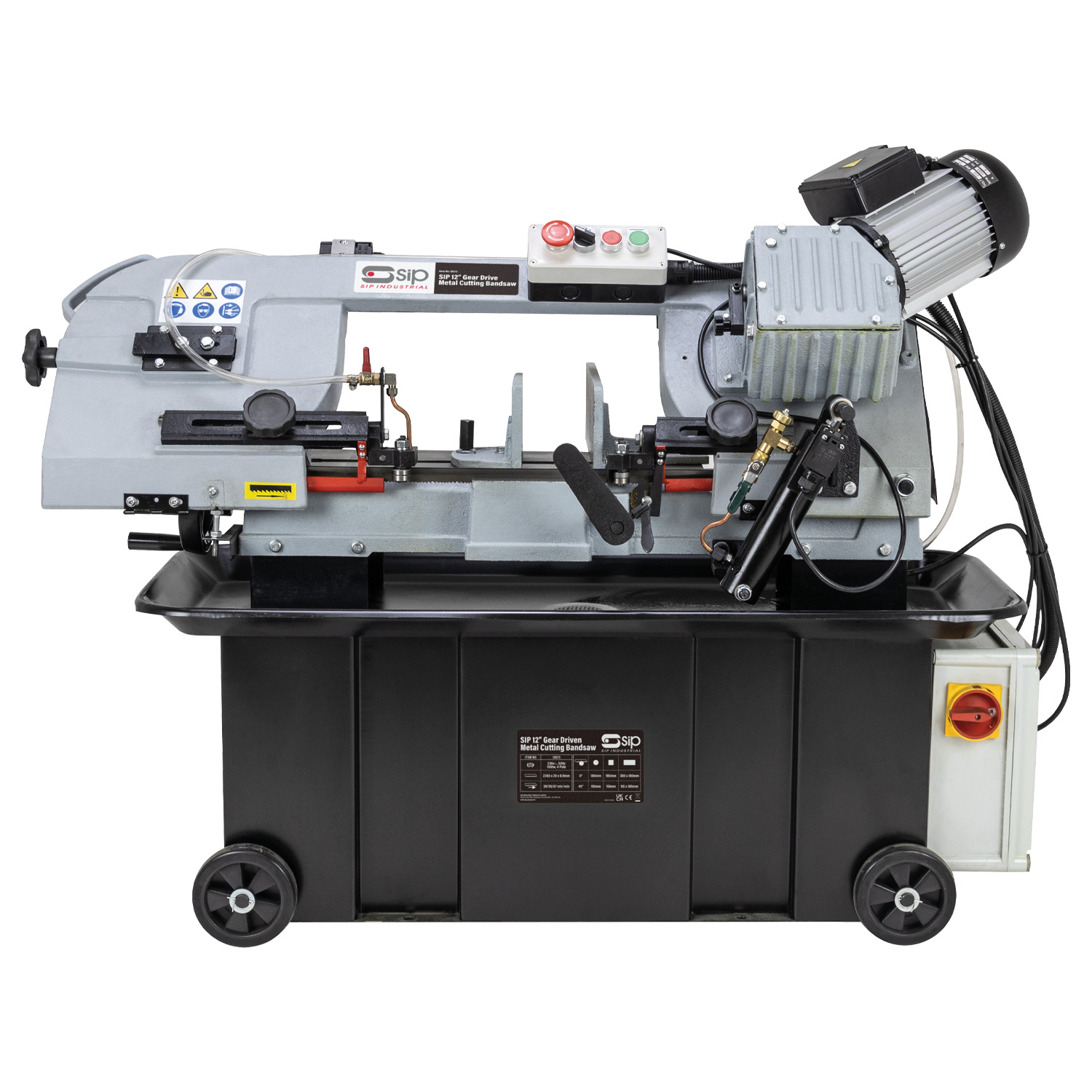

01573 SIP 12″ Gear Drive Metal Bandsaw

The SIP 12″ Gear Drive Metal Bandsaw is a powerful and accurate gearbox-driven bandsaw tool ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

KEY FEATURES

• Three-speed direct drive motor gearbox
• Heavy-duty cast iron fixed head bow
• Adjustable cast iron vice
• Enhanced safety features

Full Specification

The SIP 12″ Gear Drive Metal Bandsaw is a powerful and accurate gearbox-driven bandsaw tool ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

Applications & uses: Ideal for professional metal fabrication and engineering workshops. Suitable for cutting mild steel, stainless steel, aluminium, copper, brass and alloys. Cleanly cuts bar, tube and profile workpieces.

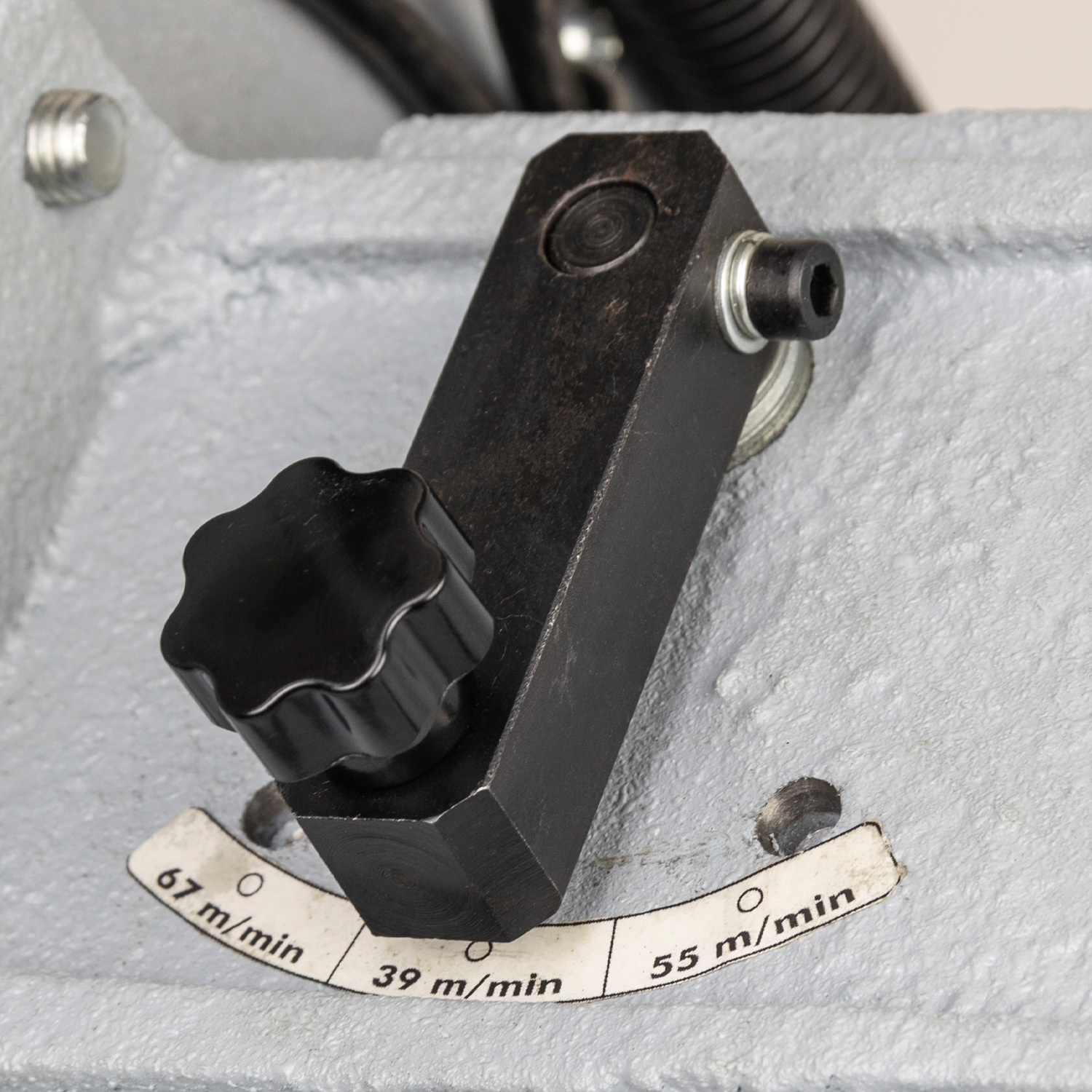

3-SPEED DIRECT DRIVE MOTOR GEARBOX

• A quick-change switch enables easy selection of the blade cutting speeds compared to belt-driven bandsaws. This increases versatility of the saw as a large range of materials can be cut quickly.

HEAVY-DUTY CAST IRON FIXED HEAD BOW

• The bow action allows cutting between 0° and 45° using an adjustable vice.
• Fitted to a wheel-mounted steel base, this weighted machine provides a rigid cutting platform which helps to reduce vibration and increasing cutting capacity.
  • An adjustable hydraulic ram dampener aids smooth cutting descent and control for greater blade control.
  • Auto-stop cut function engages when the cutting process is complete.
  • Supplied with bi-metal vari-pitch blade for enhanced cutting performance.
  • A manual blade tensioner ensures the blade cuts cleanly and accurately.
  • Also fitted to the bow, a coolant system extends blade life and cools cutting area.

ADJUSTABLE CAST IRON VICE

• Cast iron vice securely holds the workpiece for precise cutting.

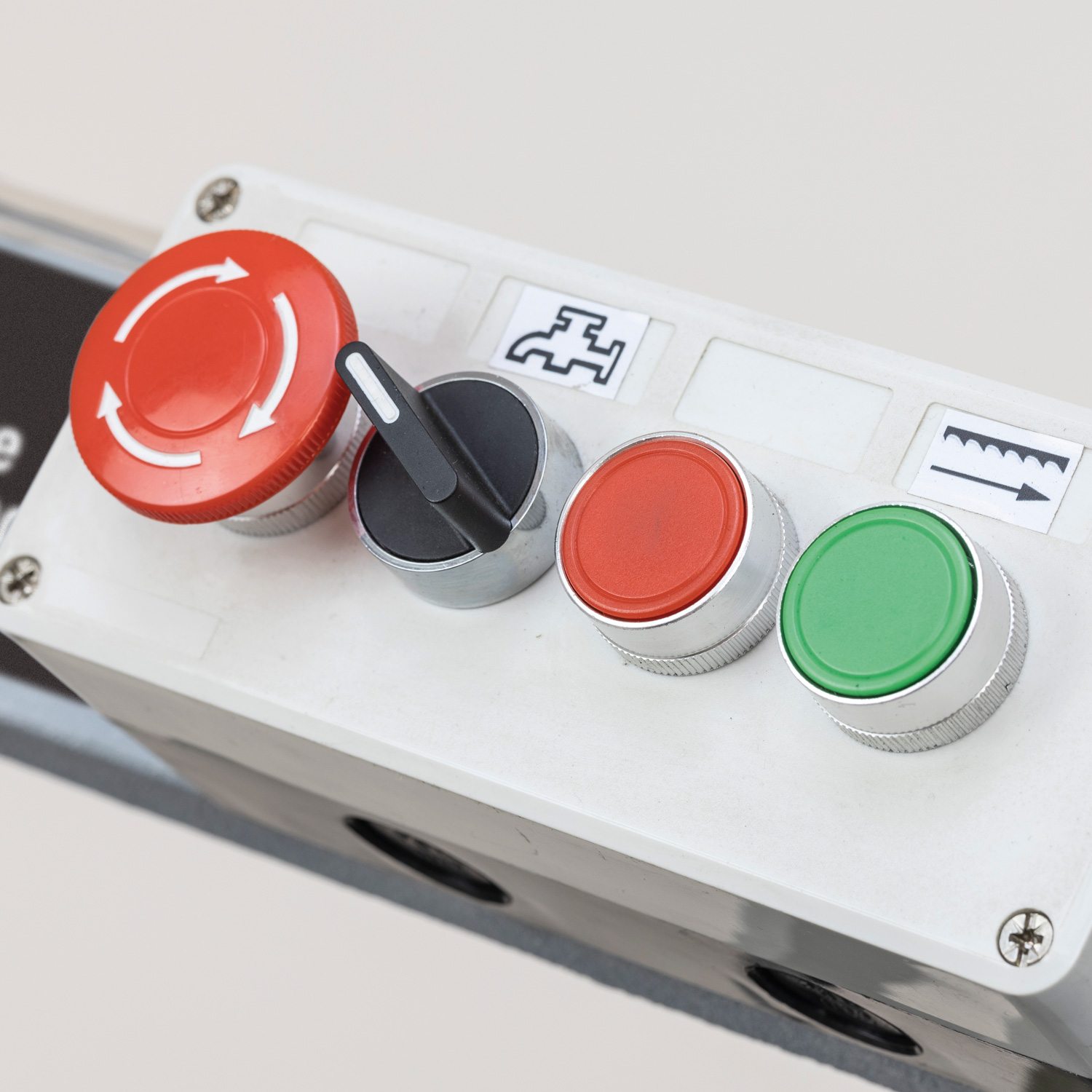

ENHANCED SAFETY FEATURES

• A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
• Interlocking switches prevent the saw running when the blade guard or belt pulley covers are opened.
• Adjustable blade covers limit exposure during cutting for greater user safety.
